Fly Tying Hook Anatomy & Geometry
Gape, wire, point, bend and barb, and how each changes the way a fly hooks and holds
A fly hook is not simply a size number bent into a familiar shape. Gape, wire diameter, bend, point geometry, eye orientation and barb design all change how much room the fly leaves for the point, how readily the hook penetrates and how it behaves under load.
Every fly eventually becomes a hook-delivery system. Materials control profile, movement, flotation and sink rate, but when the fish eats, the hook geometry takes over.
That is why two hooks carrying the same size number can behave very differently. One may use fine wire and a broad gape. Another may use heavier wire, a shorter shank and a deeper bend. Both can be excellent. They are solving different mechanical problems.
The goal is not to identify one “best” hook shape. It is to understand the tradeoffs well enough to choose the right platform before the first thread wrap goes down.
The Mechanics in One Minute
- Gape: the open distance between point and shank. Fly bulk can reduce the usable opening.
- Wire diameter: affects hook mass, strength and the amount of material that must pass through tissue after the point enters.
- Point geometry: controls the shape of the penetrating section and how the tip transitions into the wire.
- Bend: influences clearance, load distribution and how deeply the hook can seat.
- Barb: adds resistance to both forward penetration and backward movement.
- Eye: affects knot position, bead fit and tying geometry, but does not by itself dictate hooking efficiency.
- Offset: moves the point out of the shank plane and can change both hooking behavior and how a fly tracks.
Hook terminology is not perfectly standardized between manufacturers. The practical measurements are the opening between point and shank, the depth of the bend, the point position and the wire diameter.
Start With Gape
Gape, often written as gap, is the open distance between the hook point and shank. Mustad uses the same practical definition: the distance between point and shank.
This matters at the vise because the fly occupies part of that opening.
A slim quill-body dry leaves most of the gape available. A bulky dubbed thorax, foam body, palmered hackle or thick streamer wing can crowd the point and reduce the effective opening even though the hook itself has not changed.
That is why wide-gape hooks exist.
Tiemco's current specifications classify the TMC 100 as a wide-gape dry-fly hook, and the TMC 2457 as 2X wide, 2X short and 2X heavy. Those specifications tell us far more about how the hook will carry a pattern than the size number alone. TMC 100 specifications and TMC 2457 specifications.
Bench Rule
Judge usable gape after the fly is tied, not before. If dubbing, foam, deer hair or hackle crowds the point, move to a wider gape or reduce material before assuming the fish simply “missed” the fly.
Hook Size Does Not Define Hook Geometry
A nominal size 14 is not a complete specification.
Manufacturers change shank length, wire diameter, gape and bend while retaining the same size number. That is why a size 14 dry-fly hook, size 14 scud hook and size 14 jig hook can look like three different objects.
For fly tyers, the useful descriptors are:
- shank: standard, X-short or X-long
- wire: fine, standard or X-heavy
- gape: standard or X-wide
- bend: round, sproat, continuous curve, jig and other forms
- eye: down, straight, up or angled jig eye
- barb: barbed or purpose-built barbless
Our Fly Tying Hook Guide is built around these manufacturer designations rather than pretending nominal hook size tells the entire story.
Wire Diameter: Penetration, Mass and Strength
Once the very tip of the point enters, the thicker section behind it has to follow. All else equal, a larger wire cross section asks more of the available force than a smaller one.
That is only one side of the trade.
Thicker wire also resists deformation better, adds weight to subsurface patterns and provides more material through the bend and gape. Fine wire reduces hook mass and is useful on delicate dries and small emergers, but it gives up some strength reserve.
| Wire choice | What it gives you | Typical tradeoff |
|---|---|---|
| Fine wire | Lower mass and less wire to drive after the point enters | Less resistance to opening under high load |
| Standard wire | General balance of mass, strength and penetration | Neither extreme |
| Heavy wire | Strength reserve and added fly weight | More mass and larger cross section |
Tiemco's TMC 3769, for example, is specified as 2X heavy with a sproat bend for wet flies and nymphs. That heavier wire is part of the hook's job, not a quality ranking against a fine-wire dry-fly hook. TMC 3769 specifications.
Point Geometry: Sharpness Is Only the Beginning
Sharpness describes how readily the terminal point begins to penetrate. Geometry describes the shape of the steel behind that tip.
A fine conical point, a faceted cutting-style point and a short robust point can all feel sharp while distributing material differently behind the tip.
The exact manufacturing terminology varies by brand. Some makers describe needle points, some cutting points, some proprietary shapes. The useful questions are simpler:
- How fine is the terminal tip?
- How rapidly does the point widen into the full wire diameter?
- How much steel remains near the tip to resist damage?
- Is the point inline with the shank or offset?
Chemical sharpening is one way manufacturers refine the terminal section. It is a process, not a point shape. Our Chemically Sharpened Fly Hooks guide goes deeper into that distinction.
Gamakatsu's B10S illustrates why the whole design matters. Gamakatsu identifies the B10S as a forged, 1X-strong stinger hook intended for hair bugs and streamers. Its useful characteristics come from the combination of point, gape, wire and bend, not from one feature in isolation. Gamakatsu B10S specifications.
The point starts the connection. The rest of the hook decides what happens after it starts.

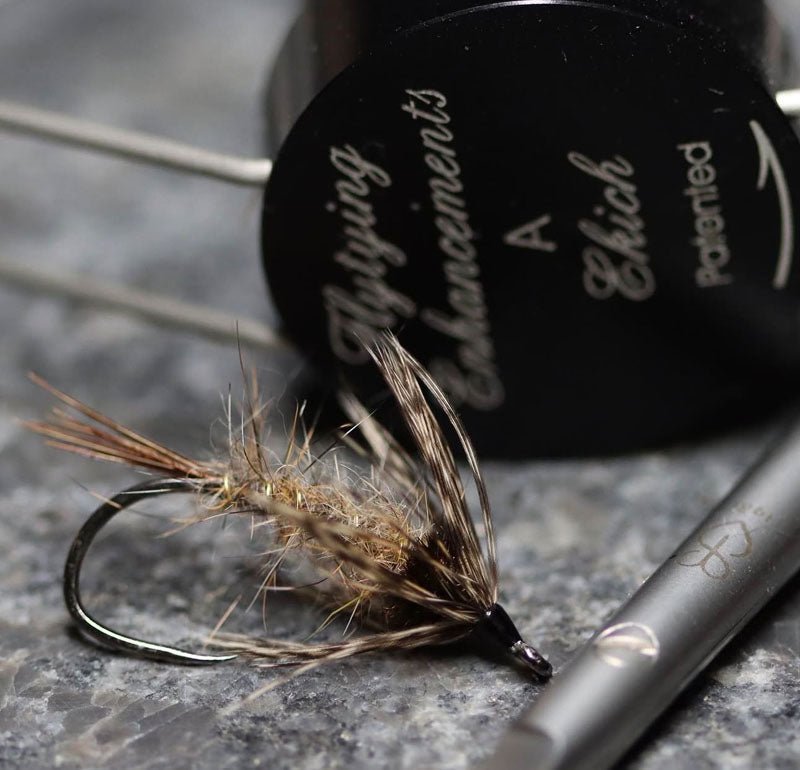

Feather Craft Tying Bench
Bend and Throat: Where the Hook Carries Load
Hook-anatomy terminology varies enough that “throat,” “bite,” and “depth” are not always used identically from one diagram to another. For practical fly tying, focus on the shape and depth of the bend.
A round bend, sproat bend and continuous curved hook distribute material and load differently. Deep curved hooks create a different relationship between point, gape and shank than a standard dry-fly hook.
That geometry also changes pattern shape.
A scud or caddis-pupa hook uses curvature as part of the fly silhouette. A standard dry-fly hook gives the body a long straight platform. A jig hook moves the eye and bend into a shape intended to work with bead weight and point-up orientation.
There is no universal “strongest bend” independent of wire and steel. Bend design, forging, wire diameter and temper work together.
Eye Orientation: Useful, but Easy to Overstate
The old version of this article made a stronger claim than we are comfortable making: that a down eye inherently directs more hooking force toward the point while a straight eye drives more efficiently.
Real line-of-pull geometry is more complicated.
The tippet leaves the eye through a knot whose position can change under load. The hook can rotate in the fish's mouth. The fly itself may be moving at an angle. Eye angle therefore influences the system, but it does not give us one universal rule about hooking efficiency.
For fly tyers, eye orientation has several clear practical effects:
- how much room remains at the front of the hook
- where the knot sits relative to the shank
- whether a bead or cone seats correctly
- how the hook balances with weight
- how easily thread can crowd the eye
The distinction between Tiemco's TMC 100 and TMC 101 is a useful example. Both are forged, wide-gape dry-fly designs in Tiemco's current specifications; the 100 uses a down eye and the 101 a straight eye. The TMC 101 is not the barbless version of the TMC 100. TMC 101 specifications.
Jig Hooks: Point-Up Comes From the System
Modern jig nymphs are often described as if the angled eye alone makes the hook ride point-up. The actual behavior comes from the complete geometry: hook shape, eye position, bead orientation, center of mass, materials and current.
A slotted tungsten bead lets the bead pass around the angled portion of many jig hooks and seat close to the eye. Concentrating that mass forward encourages the fly to orient around the weighted head, while the hook geometry places the point away from the bottom more often than a conventional down-point presentation.
That can reduce snagging. It does not guarantee one exact orientation through every current seam or drift.
Use our Fly Tying Bead Size to Hook Size Guide when matching slotted beads to jig hooks. Hook geometry and bead fit have to work together.
Offset Points: A Real Tradeoff
An offset point sits slightly out of the plane of the shank. The concept is common in conventional fishing because moving the point out of line can change how readily it finds purchase.
For fly tying, offset can also change how the finished fly tracks.
Tiemco's own description of the TMC 2487/2457 family says the company eliminated offset after observing that flies such as emergers and soft hackles could tilt underwater. Tiemco says the revised overall geometry improved tying ease and, in its testing, maintained or improved hooking and holding performance. That is a useful manufacturer example of why one geometry decision can affect both presentation and hooking.
For most trout flies we prefer inline points unless the hook model is deliberately designed otherwise.
The Barb: Penetration vs. Retention
A barb creates a raised obstruction behind the point. To fully bury a barbed hook, tissue has to pass over that larger section. On the way back out, the same structure resists reverse movement.
That means the barb participates in two opposite jobs:
- it adds resistance during deeper penetration
- it adds resistance to backing out
Removing the barb reduces that obstruction, but the effect on actual fish retention depends on the whole system: how deeply the hook sets, hook bend and gape, fish movement, rod angle and whether line tension is maintained.
This is why we avoid the simple claim that barbless hooks are always “deeper, faster and better.” They can penetrate with less obstruction once the point reaches the barb location, and they simplify release. Retention is more dependent on geometry and tension.
Purpose-built barbless hooks
A purpose-built barbless hook is not necessarily just a barbed hook with the barb deleted.
Tiemco says its TMC 100BL is fine-tuned for barbless performance and uses a slightly extended point compared with the standard model. Firehole builds its Sticks line as barbless hooks from the outset. The Firehole 315, for example, is specified as a chemically sharpened, barbless, straight-eye hook with a deep curved bend, heavy wire and a 2X gape. TMC 100BL specifications and Firehole 315 specifications.
Crushing a Barb
If you crush a barb, do it before tying the fly and inspect the point afterward. The goal is a smooth profile. A partially crushed barb or damaged point gives you the disadvantages of both systems.
Forging, Temper and Steel
Point sharpness gets attention because you can feel it with a fingertip. Heat treatment and forging are less visible and at least as important.
Hook steel has to balance resistance to deformation with resistance to brittle failure. Manufacturers control that through alloy choice, forming, forging and heat treatment.
There is no useful universal rule that one exact tempering temperature or one production sequence applies to every hook brand. Those processes vary by maker and model.
Forging typically changes the wire cross section in selected areas rather than simply making the hook “stronger everywhere.” Tiemco identifies the TMC 100 family as forged. Gamakatsu identifies the B10S as forged and 1X strong. Those are design choices intended to support each hook's specific use.
The fly tyer should judge the result: does the hook hold the intended fish on the intended tippet without unnecessary mass?
Five Hook Families and the Trade They Make
| Hook | Manufacturer specification | What the geometry is solving |
|---|---|---|
| TMC 100 | Dry fly, down eye, 1XF, wide gape, forged | Low-mass dry-fly platform with useful point clearance |
| TMC 100BL | Dry fly, down eye, 1XF, wide gape, forged, barbless | Purpose-built barbless dry-fly geometry |
| TMC 2457 | 2X wide, 2X short, 2X heavy, curved | Compact scud, caddis and emerger bodies with substantial gape and wire |
| TMC 3769 | Wet fly/nymph, down eye, 2X heavy, sproat bend | Heavier wet-fly and nymph platform |
| Gamakatsu B10S | Stinger, 1X strong, forged | Hair bugs and streamer patterns requiring a broad, strong platform |
| Firehole 315 | Curved deep bend, heavy wire, 2X gape, straight eye, barbless | Klinkhammer-style emergers, stoneflies and curved nymph profiles |
The table is not a ranking. It is the point of the article: every change in wire, gape, bend and point creates a different tool.
Choose the Hook Before You Choose the Recipe
Dry Flies
Protect Gape and Reduce Mass
Fine or appropriately light wire and useful point clearance matter more than simply choosing the traditional model number.
Nymphs
Match Wire to Weighting
Heavy wire can contribute mass and strength; jig geometry can change bead fit and bottom contact.
Scuds & Emergers
Use the Bend as Part of the Fly
Curved hooks change silhouette and body length while wide gape protects point clearance.
Streamers
Leave the Point Exposed
Bulky materials can close effective gape quickly. Strong wire and generous clearance matter as fly size grows.
Barbless
Buy Geometry, Not an Absence
Purpose-built barbless hooks can use altered point and bend geometry rather than simply removing a barb from a barbed design.
Any Fly
Check the Point
The best geometry in the world stops working when the point has been rolled against rock, wood or a vise jaw.
The Hook Is the Platform
Fly tyers tend to think about hooks in categories: dry, nymph, streamer, scud, jig. Those categories are useful only because they bundle geometry decisions that usually work for the intended pattern.
Once you understand the underlying mechanics, you can move beyond the label.
Look at gape after the fly is dressed. Look at wire relative to fish size and tippet. Look at the bend relative to the body shape. Look at the point and barb as a penetration system. Look at the eye in the context of the knot, bead and front of the fly.
Then choose the hook whose tradeoffs serve the pattern.
That is the point of it all.
